The Immutable Stack

04-10-2014 (dierendag)

Martin van Amersfoorth

@mamersfo

Michiel Borkent

@borkdude

finalist

Presenter Notes

Schedule

  • Intro (10 m.)
  • Clojure crash course (20 m.)
  • REST API (10+20 m.)
  • User interface (10+20 m.)
  • Database (10+20 m.)

Presenter Notes

Clojure

LispCycles

Presenter Notes

Immutable Stack

Engineered:

  • Noir
  • Pedestal

Evolutionary:

  • Ring, Compojure, Liberator, Hiccup (2009)
  • Funding, books, conj (2010)
  • ClojureScript (2011)
  • Datomic (2012)
  • core.async (2013)
  • Om, Reagent (2014)

Presenter Notes

Examples @ Finalist

  • Matchmaker
  • Lipton

Presenter Notes

Clojure crash course

Presenter Notes

Clojure crash course

REPL

  • Interactive development: Read Eval Print Loop

    1 user=>                         <- prompt

  • Start one by lein repl or in IntelliJ

Presenter Notes

Clojure crash course

In the REPL we will cover the following basics:

  • Clojure basics and special forms
    • if
    • let
    • function call
    • function definition

Presenter Notes

Clojure crash course

If

1 (if (< (rand-int 10) 5)
2   "Smaller than 5"
3   "Greater or equal than 5")

Presenter Notes

Clojure crash course

Let

1 (let [x (+ 1 2 3)
2       y (+ 4 5 6)
3       z (+ x y)]
4   z) ;;=> 21

Presenter Notes

Clojure crash course

Function call

1 (inc 1) ;;=> 2

instead of

1 inc(1) // 2

It is called prefix notation

Presenter Notes

Clojure crash course

Function definition

1 (def my-fun (fn [x]
2               (+ x 2)))
3
4 ;; same as:
5 (defn my-fun [x]
6   (+ x 2))

Presenter Notes

Clojure crash course

Literals, symbols and keywords

1 1     ;; integer literal
2 "foo" ;; string literal
3 'foo  ;; quoted symbol
4 foo   ;; symbol (will evaluate to value bound to foo)
5 :foo  ;; keyword, more or less a constant, often used as key in hashmap
6 {:a 1, :b 2} ;; map literal

Presenter Notes

Clojure crash course

  • Clojure collections

    • vectors
    • maps
    • lists
    • sets
  • Functions on data structures

Presenter Notes

Clojure crash course

Vectors

1 (def v1 (vector 1 2 3 4))
2 (def v2 [1 2 3 4])
3 (= v1 v2) ;; true
4 (get v1 0) ;; 1
5 (get v1 3) ;; 4
6 (get v1 4) ;; nil
7 (v1 0) ;; 1
8 (v1 3) ;; 4
9 (conj v1 5) ;; [1 2 3 4 5]

Presenter Notes

Clojure crash course

Maps

1 (def m1 {:a 1 :b 2})
2 (get m1 :a) ;; 1
3 (get m1 :b) ;; 2
4 (m1 :a) ;; 1
5 (:a m1) ;; 1
6 (:c m1) ;; nil
7 (assoc m1 :c 3) ;; {:c 3, :b 2, :a 1}

Presenter Notes

Clojure crash course

Lists. Used mostly for representing code (for example in macros).

1 (def expr (list 'println 1 2 3)) ;; (println 1 2 3), unevaluated
2 (eval expr) ;; prints 1 2 3, normally we don't do this
3 (conj (list 1 2 3) 4) ;; (4 1 2 3)

Presenter Notes

Clojure crash course

Sets

1 (def s1 #{1 2 3})
2 (contains? s1 1) ;;=> true
3 (contains? s1 4) ;;=> false
4 (conj s1 4) ;;=> #{1 2 3 4}
5 (disj s1 3) ;;=> #{1 2}

Presenter Notes

Sequence abstraction

Clojure collections implement a sequence interface, so you can apply general sequences functions.

Examples: first, rest, map, filter, remove.

1 (def v1 [1 2 3 4])
2 (first v1) ;; 1
3 (rest v1) ;; (2 3 4)
4 (map inc v1) ;; (2 3 4 5)
5 (filter odd? v1) ;; (1 3)
6 (remove odd? v1) ;; (2 4)

Presenter Notes

Mutable state

Atoms are mutable references to immutable values.

One of 4 kinds of mutable references in Clojure.

Pure functions are used to atomically transform immutable value stored in reference.

 1 (def game-state (atom {:score 0}))
 2
 3 (defn increase-score [old-state points]
 4 (update-in old-state [:score] + points))
 5
 6 ;; test:
 7 (increase-score {:score 40} 20) ;;=> {:score 60}
 8
 9 (defn score! []
10   (swap! game-state increase-score 20))
11
12 @game-state ;;=> {:score 0}
13 (score!)
14 @game-state ;;=> {:score 20}
15 (score!)
16 @game-state ;;=> {:score 40}

Presenter Notes

Clojure crash course

Use the Clojure cheat sheet

Presenter Notes

REST API

Presenter Notes

REST API

  • Ring: HTTP abstraction
  • Compojure: routing
  • Liberator: expose data as resources
  • Various libs: resource representations

Presenter Notes

Ring

  • HTTP abstraction library
  • Inspired by WSGI (Python) and Rack (Ruby)
  • Represents requests and responses as maps
  • SPEC
  • Middleware

Example:

1 (defn handler [req]
2   {:status 200
3    :body "{:a 1, :b 2}"
4    :headers {"Content-Type" "application/edn"})
5
6 (defn run-server []
7   (run-jetty #'handler {:port 8080}))

Presenter Notes

Compojure

Example:

 1 (defroutes main-routes
 2   (GET "/" [] (index-page))
 3   (GET "/animals/:id" [id]
 4     (find-animal id))
 5   (route/resources "/")
 6   (route/not-found "Page not found"))
 7
 8 (def app
 9   (-> (handler/site main-routes)
10     (wrap-base-url)))

Presenter Notes

Liberator

  • Library for exposing data as resources
  • Compliant with relevant requirements of HTTP specification RFC-2616
  • Inspired by Erlang Webmachine

Example:

1 (defresource hello-world
2   :available-media-types ["text/plain"]
3   :handle-ok "Hello, world!")

Decision tree

Presenter Notes

Representations

  • EDN
  • Cheshire, clj-json
  • data.xml
  • Hiccup

Presenter Notes

Putting it all together

Code example from api.clj

Presenter Notes

Assignments

  • We'll use an example project to work on.
  • Follow the instructions in the README if you haven't yet setup a Clojure environment.
  • We have USB-sticks with IntelliJ + Cursive for Mac, Linux and Windows
  • Each assignment is based on a git branch and can be worked on independently
  • The answers are provided in the example's master branch

Presenter Notes

Assignment 1

$ git checkout rest-api

Add endpoints / liberator resources to api.clj

  • GET
    • all books
    • one specific book
  • POST
    • a new book
  • DELETE
    • a book
  • PUT
    • to change book details

Test it with curl, browser or other REST client

Presenter Notes

User interface

Presenter Notes

User interface

  • Clojurescript
    • Clojure compiled to javascript
  • React

    • V of MVC
    • Component based
    • Components can have props and inner state
    • Virtual DOM
  • ClojureScript abstractions

    • Om
    • Reagent

Presenter Notes

ClojureScript abstractions

Om

  • Opinionated library by David Nolen
  • App-state based on one atom
  • Cursor based access (kind of a functional lens / zipper)
  • Components can access shared state, app state or local state
  • Communication between components via app-state, handlers or core.async
  • Explicit hooks to React lifecycle
  • Follows React semantics closely (e.g. local state changes cause re-rendering)

See examples

Presenter Notes

ClojureScript abstractions

Reagent

  • Minimalistic ClojureScript interface to React
  • State is saved in RAtom, like clojure.core/atom, but keeps track of derefs
  • Components can deref RAtom and will be re-rendered when RAtom changes
  • Less verbose than Om
  • You can hook to React lifecycle, but often don't need to

See examples

Presenter Notes

Assignment 2

$ git checkout user-interface

Implement the following user story.

When user clicks on button with text "Books" a screen will appear that lists all books with:

  • cover
  • title
  • authors
  • release data
  • animal on cover

The screen could look like the example in the next slide.

Presenter Notes

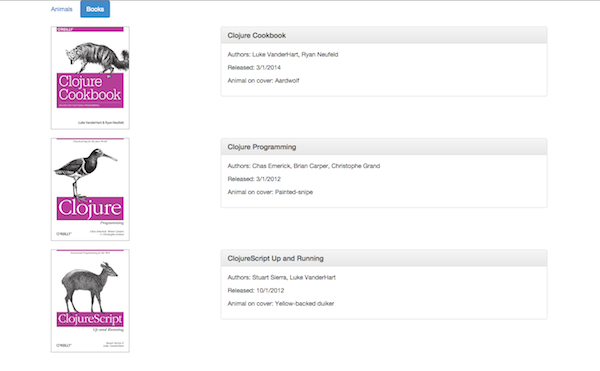

Example book screen

this

Presenter Notes

Database

Presenter Notes

Datomic: deconstructing the database

relations | objects => facts

Information Model

place | time => values

State Model

client | server => peers

Distribution Model

reads | writes => reaction

Coordination Model

Datomic

Presenter Notes

Information Model

  • Traditional: relations vs. objects, impedance mismatch

EAVT

  • Datomic: facts, EAVT, Datoms - combined with a declarative, relational query language to store and retrieve those facts (no SQL by the way)

Presenter Notes

State Model

  • Traditional: update in place, contention, "the basis problem"

Treerings

  • Datomic: Accretion of immutable facts, the database as an expanding value, otherwise: excision

Presenter Notes

Distribution Model

  • Traditional: Client-server, partitions between service providers and service requesters

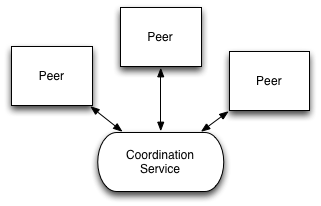

Peers

  • Datomic: Peers and Storage, and Transactors too, empower applications by coordinating change and storage

Presenter Notes

Coordination Model

Deconstructing the Coordination Model

  • Traditional: heavy coordination for reads and writes, need to poll for novelty

Perception

  • Datomic: splits "perception" (reads) and "process" (writes), reactive - not polling

Presenter Notes

Datalog in 6 minutes

Presenter Notes

Query Anatomy

Clojure

1 (q ('[:find ...
2       :in ...
3       :where ...]
4       input1
5       ...
6       inputN))

:where - constraints, :in - inputs, :find - variables to return

Presenter Notes

Variables and Constants

Variables

  • ?customer
  • ?product
  • ?orderId
  • ?email

Constants

  • 42
  • :email
  • "john"
  • :order/id
  • #instant "2012-02-29"

Presenter Notes

Data Pattern: E-A-V

1 -------------------------------------------
2 | entity | attribute | value              |
3 -------------------------------------------
4 | 42     | :email     | jdoe@example.com  |
5 | 43     | :email     | jane@example.com  |
6 | 42     | :orders    | 107               |
7 | 42     | :orders    | 141               |
8 -------------------------------------------

Constrain the results returned, binds variables

1 [?customer :email ?email]

-> jdoe@example.com, jane@example.com

1 [42 :email ?email]

-> jdoe@example.com

Presenter Notes

Data Pattern: E-A-V

1 -------------------------------------------
2 | entity | attribute | value              |
3 -------------------------------------------
4 | 42     | :email     | jdoe@example.com  |
5 | 43     | :email     | jane@example.com  |
6 | 42     | :orders    | 107               |
7 | 42     | :orders    | 141               |
8 -------------------------------------------

What attributes does customer 42 have?

1 [42 ?attribute]

-> :email, :orders

What attributes and values does customer 42 have?

1 [42 ?attribute ?value]

-> :email - jdoe@example.com, :orders - 107, 141

Presenter Notes

Where Clause

Where to put the data pattern?

1 [:find ?customer
2  :where [?customer :email]]

Implicit Join

1 [:find ?customer
2  :where [?customer :email]
3         [?customer :orders]]

Presenter Notes

Input(s)

1 (q '[:find ?customer :in $ :where [?customer :id] [?customer :orders]]
2    db)

Find using $database and ?email:

1 (q '[:find ?customer :in $ ?email :where [?customer :email ?email]]
2     db "jdoe@example.com")

Presenter Notes

Predicates

Functional constraints that can appear in a :where clause

1 [(< 50.0 ?price)]

Find the expensive items

1 [:find ?item
2  :where [?item :item/price ?price]
3         [(< 50.0 ?price)]]

Presenter Notes

Aggregates

The syntax is incorporated in the :find clause:

1 [:find ?a (min ?b) (max ?b) ?c (sample 12 ?d) :where ...]

The list expressions are aggregate expressions. Query variables not in aggregate expressions will group the results and appear intact in the result.

The included aggregation functions are:

  • min, max
  • count, count-distinct
  • sum, avg, median
  • variance, stddev
  • rand

Presenter Notes

Functions

1 [(shipping ?zip ?weight) ?cost]

Call functions by binding inputs:

1 [:find ?customer ?product
2  :where [?customer :shipAddress ?address]
3         [?address :zip ?zip]
4         [?product :product/weight ?weight]
5         [?product :product/price ?price]
6         [(Shipping/estimate ?zip ?weight) ?shipCost]
7         [(<= ?price ?shipCost)]]

Or: find me the customer/product combinations where the shipping cost dominates the product cost.

Presenter Notes

Assignment 3

$ git checkout database

Test the datalog queries in webapp.query_test.clj.

You'll also get instructions how to perform the tests and how use the REPL to build your queries, in order to:

  • Query by attribute
  • Query by attribute with param
  • Query with predicates
  • Query with joins
  • Query with functions

Presenter Notes

(thanks!)

Presenter Notes
